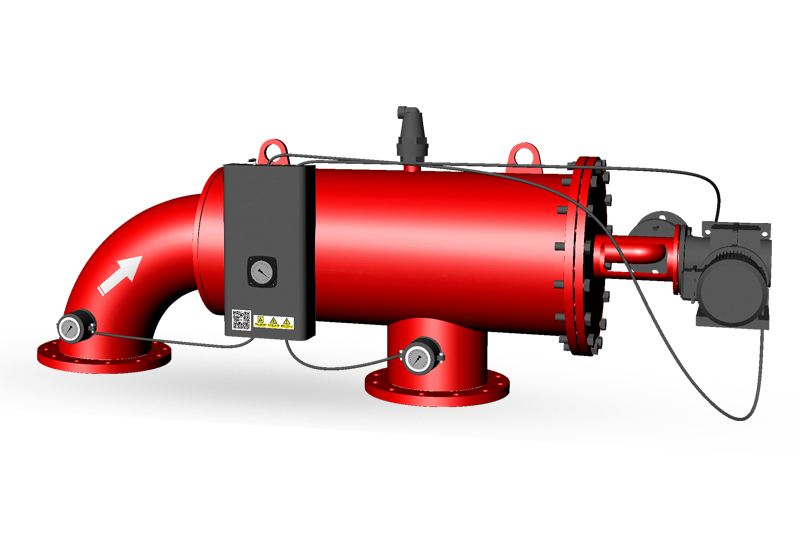

BTDS-F
Nanjing Beite
Working Principle
When the water flows through the filter, the mechanical impurities in the water are intercepted by the filter screen. When the impurities accumulated on the surface of the filter screen increase and the combined pressure difference reaches 0.04MPa. The differential pressure switch sends a signal, and at the same time, the PLC sends a command, the drive motor starts, the sewage valve opens, and the impurities deposited in the filter screen are brushed by the rotating brush and discharged from the sewage outlet. The entire scrubbing and sewage process does not require personnel to operate, and does not need to stop. At the same time, the equipment is also equipped with regular cleaning and manual cleaning and sewage functions to ensure the safety and reliability of the water in any situation. So far, the automatic brush self-cleaning filter realizes the filtering effect of the system without stopping the system and ensures the normal operation of the entire system.
Technical Parameters
Work pressure: ≤2.5Mpa
Operating temperature：≤150°C
Cleaning time: set arbitrarily
Drag loss: 2.0-8.0KPa
Set differential pressure range：0-69KPa
Motor Power：180-750W

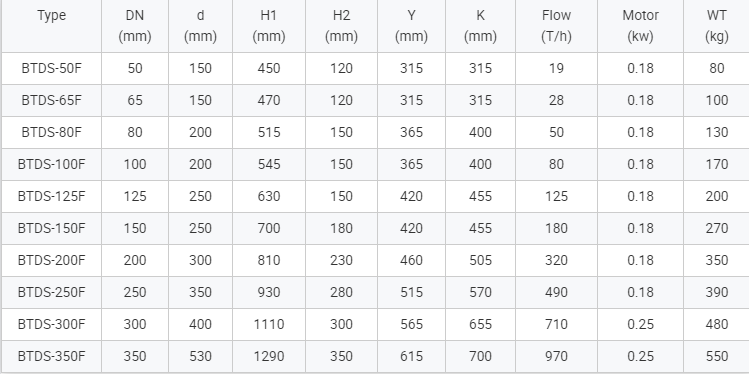

Appearance parameters
Product Features
1. Fully automatic operation: After setting the data once, the automatic brush self-cleaning filter can automatically detect the pressure difference between the inlet and outlet, automatically clean the filter screen, and automatically discharge sewage, truly unattended.
2. Accurate and reliable: The core component of the automatic brush self-cleaning filter - the differential pressure controller is imported brand, which has the advantages of accurate measurement and reliable control, and eliminates the phenomenon that the equipment does not work or does not stop due to measurement control errors.
3. Reasonable configuration: Electric butterfly valve is used as the sewage valve to solve the phenomenon of loose valve closing and unstable quality, and it can also avoid the influence of too fast opening speed of the solenoid valve on the system pressure.
4. Advanced design: The automatic brush self-cleaning filter absorbs Israel's advanced automatic filtering technology, and adopts a unique double structure of brushing and sucking, which can completely remove dirt.
5. Multiple self-protection: The controller is equipped with working time limit protection. When a fault occurs, the filter is blocked by a large number of foreign objects that cannot be removed, resulting in excessive pressure loss, and the filter is always in the state of cleaning and sewage discharge. The continuous cleaning time can be set arbitrarily.
6. Meticulous processing: Strict quality assurance system, strict organization, and careful processing make the automatic brush self-cleaning filter have a leading water quality. Flat quality and service life, the main engine is more than 15 years, and the auxiliary engine is more than 20 years.
7. High degree of automation: provide standard communication interface, can be connected to any monitoring network.
