Fully Automatic Brush Type Self-Cleaning Filter
The fully automatic brush type self-ceaning filter is suitable for all kinds of water supply systems, especially the systems that cannot be stopped in continuous operation. BTDS type brush type self-cleaning filter can filter out various mechanical impurities in the water system to ensure the safe and reliable operation of the equipment in the system . It can judge the working state of the filter according to the pressure difference between the incoming and outgoing water, and truly realize the functions of automatic detection, automatic cleaning and automatic sewage discharge.
Filter Material
Housing: Carbon Steel or 304 Stainless Steel
Screen: 304 Stainless Steel
Cleaning Brush: Bristle Hair or Stainless Steel
Key Components
1. Housing,
2. Filter Cartridge (filtering dirt),
3. Cleaning Mechanism (including cleaning brush, scrubbing filter screen),
4. Controller (collecting and comparing differential pressure signals, outputting control signals),
5. Electric Motor (receives the control signal and provides the power required by the cleaning mechanism),
6. Electric Ball Valve (receives the control signal and discharges the dirt).

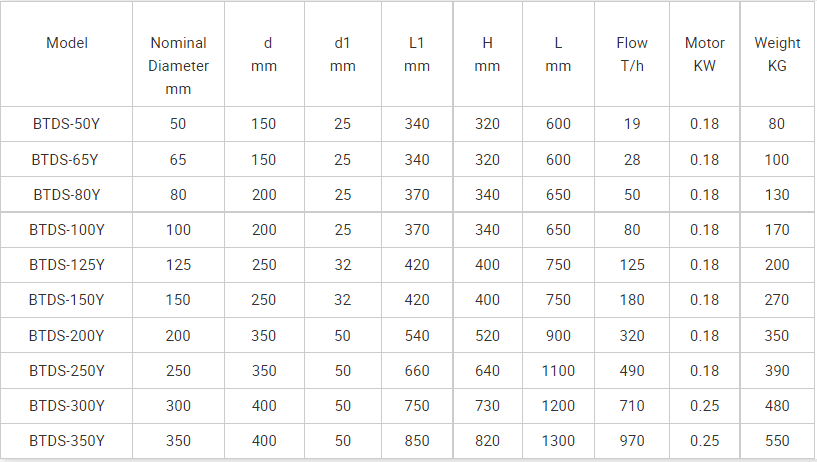

Technical Parameters
A single maximum flow capacity is up to 4000m3/h
Set Differential Pressure Range: 0～69KPa
Working Pressure: ≤2.5MPa(customized is available)
Working Temperature ≤150ºC
Power Pupply: 380V/50 Hz (Customized is available)
Cleaning Method: Brush Type
Filtration Accuracy: 4-25meash/in
Motor Power: 180～750W
Features
1. Electric device of the automatic washing
2. Filtering precision is 150 um
3. Simple Washing Way: By stainless steel brush
4. Anti- Corrosion: Stainless steel body.
5. No cutoff for the backwashing, low water consumption: No more than 1% of the total quantity.
FAQ
Q1: Can I have a sample ?
A : Yes, welcome to place sample order to test and check quality. Mixed samples are also OK.
Q2: What is your lead time for production?
A : Generally Sample needs 1-3 days,mass production needs 15-30 days,also depands on your request.
Q3 : Can you accept mixed batch of different products?
A : Yes,we can provide different product mix wholesale.
Q4: What payment terms do you accept?
A :Trade assurance,TT,Western Union.
Q5 : What is the warranty for your products?
A :We provide one year warranty for the products..
Q6 : Are you trading company or manufacturer?
A :Yes,We are manufacturer.Welcome to visit our factory and check our pruducts.
