BTDY
BEITE
Model Description
NZG—□—□
Indicates Beite brand constant pressure water supply device, the first □ indicates the nominal diameter of the tank, and the second □ indicates the maximum working pressure.
Such as NZG-800-0.6
Indicates a constant pressure water supply device with a tank diameter of 800 and a working pressure of 0.6MPa.

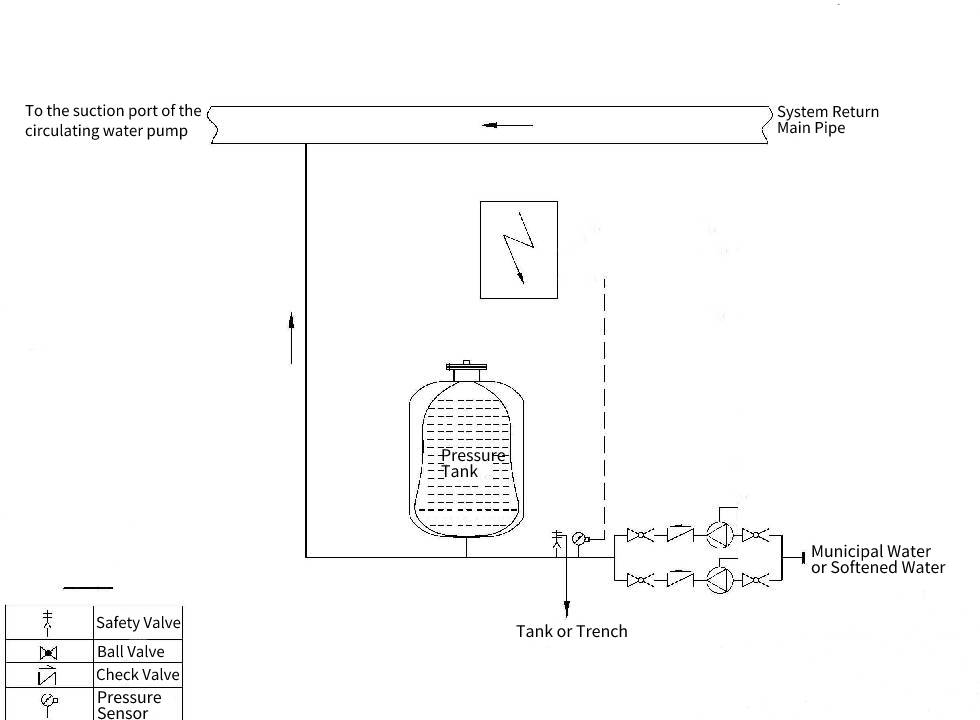

Working Principle
In a closed-loop system, in order to ensure the stability of the system pressure, an adjustable expansion device is required. When the system pressure decreases, the pressure of the water chamber of the pressure tank connected to it also decreases, the volume of the air chamber expands, and the pressure also decreases. When the control system sets the lower limit, the water pump automatically turns on to replenish the system until the set value is reached. The upper pressure limit is set and the pump stops. When the water in the system is heated, the temperature increases, the volume expands, the air chamber is squeezed, and the pressure in the pressure system increases. When the limit value is reached, the water in the system enters the expander (or softened water tank) through the safety release device. The system pressure also drops to the set value and stops pressure release, achieving the function of constant pressure waterreplenishment.
Technical Parameters
1. Power supply: 380V, 50HZ
2. Water supply range: 0 ~ 1000m3/h (check the supplied pump parameters for more details)
3. Pressure range: 0～2.0MPa, pressure adjustment accuracy: ≤0.01 MPa (set according to site requirements)
4. Control power: check the supplied pump parameters for more details

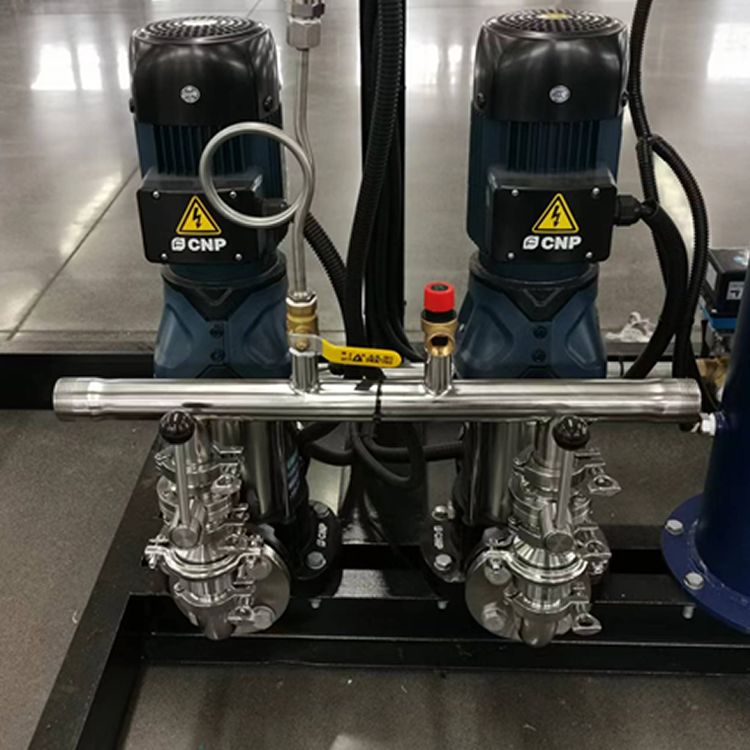

5. Number of water pumps: 2 sets
6. Operation mode: manual, automatic
7. Ambient temperature: 5-40°C, ambient humidity: <90% (20°C), no condensation
8. Transport liquid: clear water, liquid temperature: 0~70℃
9. Installation occasion: indoor, outdoor
Features
1. Automatic constant pressure, automatic water replenishment, and automatic water drainage.
2. The operating parameters can be set arbitrarily, and it is suitable for any closed constant pressure water supply system.
3. Save energy: automatically read system information and only start the device when necessary.
4. It occupies a small area, is easy to install and use, operates fully automatically, is safe and reliable, and is easy to maintain.
5. Reliable and durable - designed for long-term and simple operation.
Application
1.Centralized domestic water supply system in residential areas, residential buildings, villages and towns.
2. Circulation pumps and cooling water supply systems for various types of central air conditioners.
3. Domestic water supply systems in high-rise buildings, hotels, restaurants, etc.
4. Comprehensive domestic water supply system for markets, office buildings and commercial buildings.
5. Hot water supply, hot water heating system and fire water supply system of high-rise buildings.
6. Production, domestic water supply, constant pressure flow water supply process of industrial and mining enterprises, etc.
