Enhancing Water Quality with Beite's Iron And Manganese Sand Filter

Overview:

Iron and manganese, two naturally occurring elements, often infiltrate our water sources, affecting both the taste and safety of our drinking water. At Beite, we've harnessed the power of innovation to tackle this issue head-on with our Iron and Manganese Sand Filter,  designed to ensure clean and safe water for various applications.

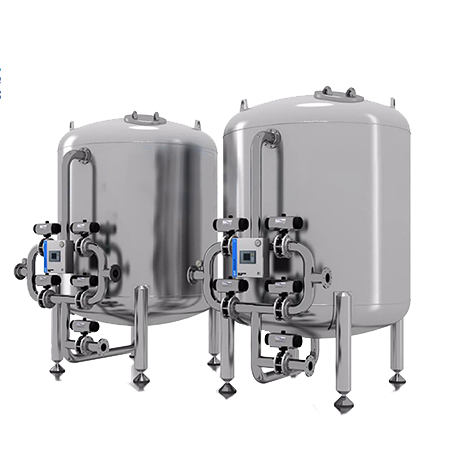

Introduction to the Beite Iron and Manganese Sand Filter

At Beite, we're dedicated to providing innovative water treatment solutions that address the specific needs of our customers. Our Iron and Manganese Sand Filter is a testament to this commitment. This advanced filtration system is engineered to effectively remove iron and manganese from water sources, enhancing water quality and minimizing the challenges posed by these contaminants.

Composition and Functionality

Filtration Media: At the heart of our system lies a carefully selected filtration media. This high-quality material plays a crucial role in the removal of iron and manganese from water. It effectively captures and retains these contaminants, preventing them from entering your water supply.

Oxidation Process: The Beite Iron and Manganese Sand Filter employs an oxidation process that transforms soluble ferrous iron (Fe2+) and manganese (Mn2+) into insoluble forms, ferric iron (Fe3+) and manganese dioxide (MnO2). This conversion is key to rendering these elements removable by the filtration process.

Catalytic Action: Natural catalytic properties within our filter media further enhance the oxidation of iron and manganese ions, ensuring that a higher percentage of these contaminants is effectively removed.

Filtration and Adsorption: The water passes through the filtration media, where any remaining solid particles and contaminants are trapped. Our filter's adsorption capabilities help to capture even the smallest impurities, ensuring the water that emerges is clean, clear, and safe for use.

1. Source water

2.Water storage tank

3. Booster pump

4. Jet pump

5. Inlet pipe

6. Iron and Manganese Removal Filters

7. Outlet pipe

8. Backwash the water inlet pipe

Application Scenarios

Beite's Iron and Manganese Sand Filter is incredibly versatile and finds application in various scenarios:

Municipal Water Treatment: Municipalities can rely on our filter to provide residents with clean and safe drinking water, free from the adverse effects of iron and manganese contamination.

Industrial Processes: Industries benefit from our filter by safeguarding their equipment, products, and processes from the detrimental impacts of iron and manganese.

Agricultural Use: Farmers can improve crop irrigation and livestock care by ensuring that the water they use is free from staining and unpleasant odors.

Problem-Solving with Beite's Filter

Our Iron and Manganese Sand Filter stands as a reliable solution for several water-related challenges:

Staining: Say goodbye to unsightly reddish-brown or black stains on fixtures, appliances, and clothing.

Odor and Taste: Enjoy water that is free from metallic tastes and unpleasant odors.

Health Concerns: Reduce the risk of health issues associated with excessive iron and manganese intake.

Aesthetic Improvement: Experience water with improved color and clarity.

In conclusion, Beite's Iron and Manganese Sand Filter is a testament to our commitment to delivering clean and safe water to communities, industries. By addressing the challenges posed by iron and manganese, we are making strides in enhancing the overall quality of life through innovative water treatment solutions.
