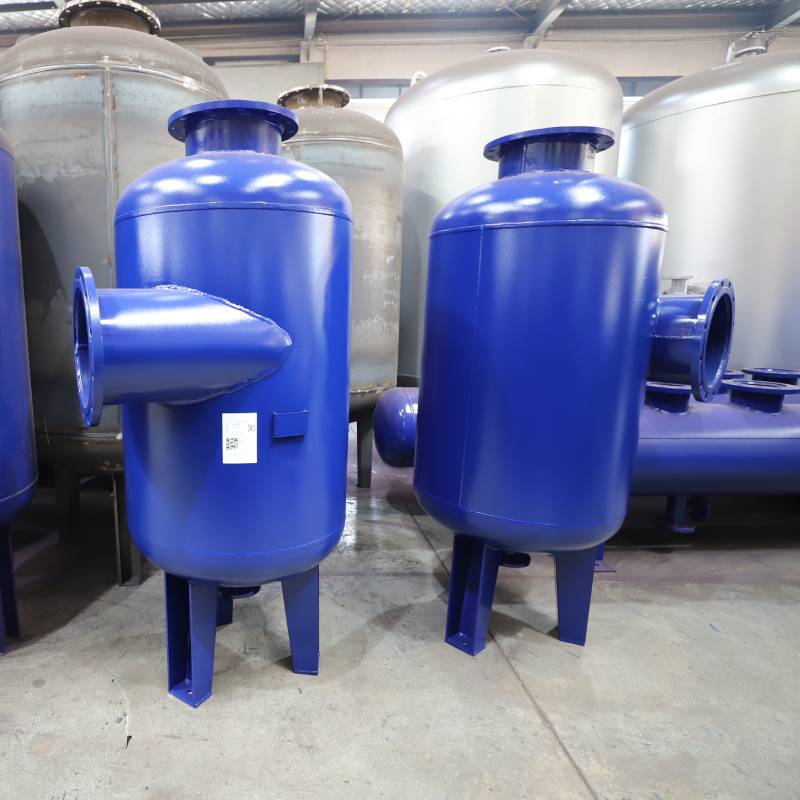

What is a Cyclone Desander?

The cyclone desander integrates cyclone and filtration. It is mainly used to remove solid particles in groundwater, underground hot water and other water sources. It is suitable for water source heat pump systems. Central air conditioning cooling water, cooling water system, winter heating and cooling circulating water system, industrial cooling water system. It is widely used in many industrial sectors such as chemical industry, environmental protection, food, medicine, etc., and achieves remarkable effects in the field of water treatment such as sand removal, turbidity reduction, and solid-liquid separation.

How it works:

The cyclone desander is made based on the screening principle of solid particles in the fluid rotating and flowing in the desander. A new type of separation device combined with a filter device. When the water flows under a certain pressure from the sand removal water to the water with different densities, under the action of centrifugal force and centripetal force, the water with low density rises and is discharged from the water outlet. The sand with high density is discharged by the equipment. The individual small particles that are discharged from the bottom and float together along the water flow are filtered by the second-stage filtering equipment to achieve the purpose of sand removal. Compared with the desanders currently on the market, it has an additional filter unit (the filtration precision can be selected by the user), which has the advantages of high sand removal rate, saving installation space, low missed capture rate of individual tiny particles, and stable working condition.

Main features:

It consumes no energy and has good sand removal effect. It is especially suitable for self-prepared wells and deep well pumps with high sand content in groundwater. It is easy to manage, easy to operate, safe and reliable and does not cause any pollution to anyone.

Operating Instructions:

① During normal operation, it is necessary to open the inlet and outlet valves and close the drain valve;

② When the sand stored in the storage tank reaches a certain height, the sewage should be discharged. When discharging sewage, open the sewage valve until clean water flows out;

③After the sewage discharge is completed, close the sewage valve

④If the sand discharge pressure is insufficient, close the valve at the water outlet.

Installation, commissioning and maintenance:

①The equipment should be installed on a good foundation, which must be flat, or it can be installed directly on the ground;

② Install pipelines and water flow direction;

③Can be used in parallel according to the actual water treatment volume;

④Can be used in series according to actual processing accuracy;

⑤Floor layout;

⑥Since the equipment has no moving parts during its working process, the equipment is maintenance-free. However, it is necessary to keep the inlet load stable and the drain valve opening and closing force to be even. Avoid thinking of damage.

Scope of application of cyclone desander:

Suitable for water source heat pump systems. Central air conditioning cooling water, chilled water system, winter heating and cooling circulating water system, industrial cooling water system. It is widely used in many industrial sectors such as chemical industry, environmental protection, food, medicine, etc., and achieves remarkable effects in the field of water treatment such as sand removal, turbidity reduction, and solid-liquid separation.

Cyclone Desander Selection Instructions:

When selecting a cyclone desander, on the premise of meeting the flow rate, priority should be given to large models of equipment, and it is recommended to use several equipment in parallel to replace large equipment in the system.
