What Causes Scaling in Water Systems and How to Prevent It

Scaling in water systems is something many industries face, and it can lead to a number of issues, including lower efficiency, higher energy costs, and even damage to equipment. Understanding what causes scaling and how to stop it can help keep systems running smoothly and save on costly repairs down the line.

What is Scaling?

In simplest terms, scale buildup occurs when dissolved minerals, such as calcium and magnesium build up on interior surfaces of the water system. Most often, this occurs when water (especially hard water) is heated or evaporates, leaving behind deposits which cling to the inside of pipes, heat exchangers, etc. Eventually blockages and corrosion occur resulting in inefficient operation.

What Causes Scaling in Water Systems?

1. Hard Water

Hard water is rich in calcium and magnesium, two key minerals that contribute to scaling. When the water heats up or evaporates, it can't hold onto these minerals anymore, leading to deposits forming in the system.

2. High Temperatures

Temperature affects the solubility of minerals in water. Heating water can make it harder for water to hold minerals in solution. Minerals will start to precipitate out as the temperature increases. Boiler or heat exchanger systems are prone to scale because of the extreme temperatures they reach.

3. Evaporation

Scaling can occur when water evaporates from a system such as a cooling tower. As water evaporates, minerals become more concentrated. Once saturation is reached, scale will start to build up.

4. Incorrect or Unbalanced Water Quality

Unbalanced water quality can cause scaling to occur faster than normal. Water quality can become unbalanced due to high pH levels or excess minerals. Poor water quality can also cause scaling.

5. Poor Water Circulation

Poor water circulation can cause minerals to build up where they do not belong. Stagnant water becomes vulnerable to scaling.

Effects of Scaling Occurrence

Reduced Efficiency: Scaling on heat exchangers, pipes and boilers insulates them and reduces their ability to transfer heat causing them to operate harder and consume more energy.

Increased Maintenance Costs: Scaling typically results in needing to clean or repair parts which can become costly.

Blocked Pipes: Eventually, scaling can build up so much that it plugs pipes entirely, decreasing water flow and/or breaking the system.

Corrosion: Scale leaves behind minerals which can increase corrosion and the rate of equipment deterioration.

How to Prevent Scaling in Water Systems

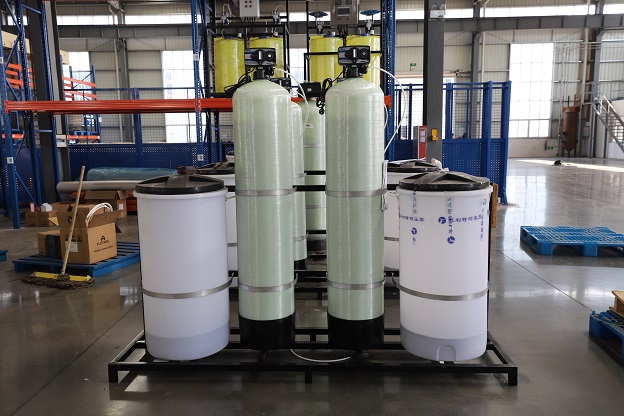

1. Use Water Softeners

One of the most effective ways to tackle scaling is by using water softeners. These systems replace the calcium and magnesium with sodium, which prevents the minerals from forming scale in the first place.

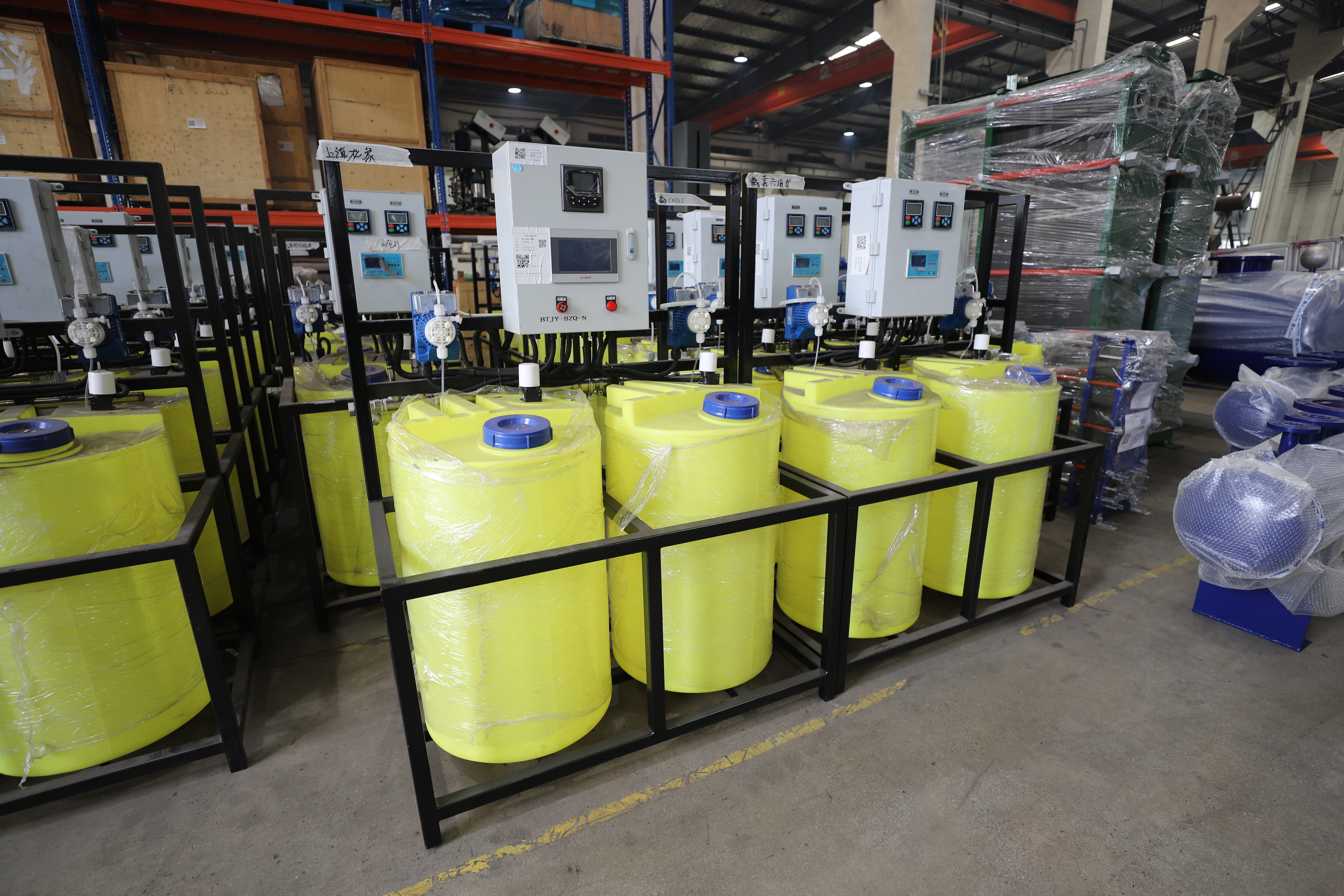

2. Chemical Treatment

Another option is to use scale inhibitors or dispersants. These chemicals prevent the minerals from coming together and forming solid deposits, keeping things running smoothly.

3. Regular Cleaning and Maintenance

Regular cleaning and maintenance can go a long way in preventing scaling. This means keeping heat exchangers, pipes, and other components clean so that scale doesn’t build up over time.

4. Control Water Temperature

Preventing high temperatures can also help prevent scaling. The hotter the water, the more likely it is that minerals will settle out of solution. Therefore, by controlling temperature, you can help keep scaling at bay.

5. Promote Water Flow

Allow water to flow through as freely as possible. Scaling is more likely to occur when water stagnates or doesn’t flow through pipes easily. Anything you can do to promote water flow will reduce your likelihood of scaling.

6. Balance Your Water

Test your water regularly and treat it to balance the pH as well as mineral count. When water is balanced, it is less likely to create scaling.

7. Consider a Reverse Osmosis System

A reverse osmosis system can help prevent the accumulation of minerals that lead to scaling. By removing the minerals from your water, you won’t have scale buildup.

Conclusion

Water scale buildup can easily be prevented. After all, it is fairly common. If you know how and why it forms you can prevent unnecessary headaches, costs, and exhaustion. Taking steps to maintain your water treatment system and watching temperature and water flow can help eliminate scale.
