Shell and Tube Heat Exchanger: Working Principle, Advantages, and Industrial Applications

Shell and tube heat exchanger is a commonly used heat transfer equipment used in many industrial process applications, HVAC systems, chemical plants, power plants, and oil & gas industry. Shell and tube heat exchanger transfers heat between two fluids. The two fluids travel through the heat exchanger without mixing. One fluid flows through the tubes, and another fluid flows outside the tubes but in a shell surrounding the tubes.

Since shell and tube heat exchanger offer sturdy design, high efficiency and capability to withstand high pressure and temperature, shell and tube heat exchanger is one of the preferred equipment for large industrial heat transfer applications.

What Is a Shell and Tube Heat Exchanger?

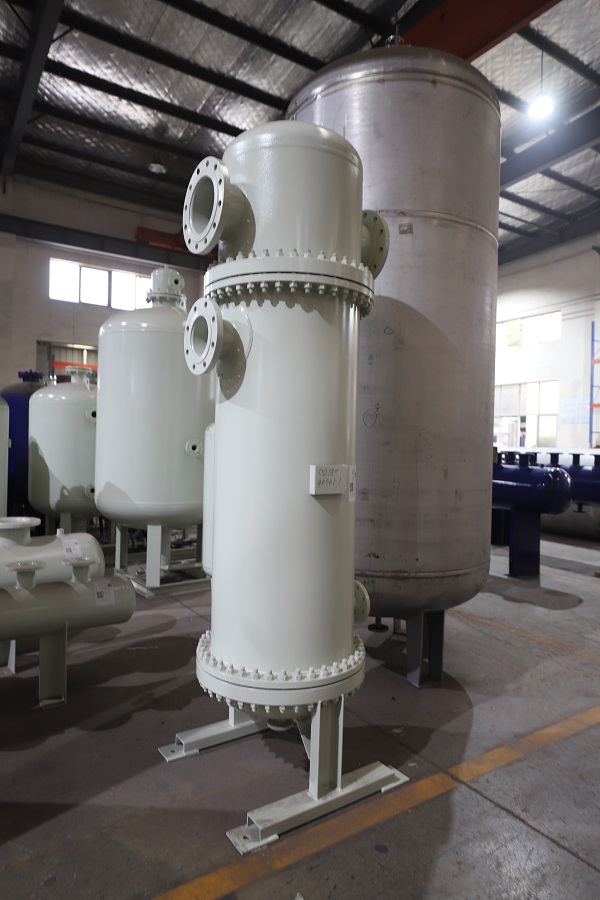

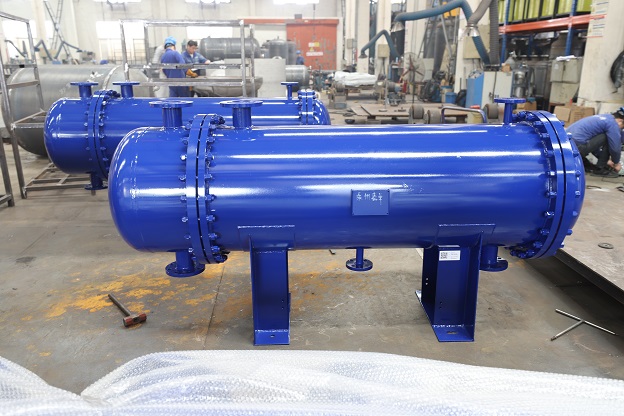

Shell and tube heat exchanger is a heat exchanger built with tubes. These tubes are inside a shell (cylinder). There is fluid flowing through the tubes and another fluid flowing outside of the tubes but inside the shell. The two fluids exchange heat, but they don't mix.

A shell and tube heat exchanger can continuously exchange heat from hot fluid to cold fluid.

Working Principle of Shell and Tube Heat Exchanger

The Heat Exchange Process works on the principle of indirect transfer of heat from one fluid to another:

Hot fluid enters the heat exchanger and flows through the shell side or tube side

Cold fluid flows in the opposite direction creating a temperature differential

Heat is conducted through the tube wall from the hot fluid to the cold fluid

Fluids never mix and cross contamination does not occur

Fluids exit the unit at new temperatures and ready for reuse or disposal

Typical Flow Arrangements are:

Parallel flow

Counter flow (best heat transfer)

Key Components

Components that make up a conventional shell and tube heat exchanger include:

Shell (outer pressure vessel)

Tube bundle

Tube sheets

Baffles (increase heat transfer efficiency)

Front and rear headers

Fluid inlet and outlet nozzles

Gaskets/sealing elements

Each part is engineered to achieve optimum efficiency, mechanical strength and service life.

Advantages of Shell and Tube Heat Exchanger

1. High heat transfer efficiency

It can be used for large industrial heat exchangers with stable heat transfer.

2. High pressure resistance

Suitable for equipment operating under high pressure and high temperature.

3. Broad range of applications

Suitable for water, steam, oil, gas, chemical fluids, etc.

4. Convenient maintenance

Tube bundle structure is easy to clean and inspect.

5. Modular design

Design according to flow rate, temperature difference and pressure requirements.

Types of Shell and Tube Heat Exchangers

1. Fixed Tube Sheet Heat Exchanger

Simple structure, widely used for clean fluid applications.

2. U-Tube Heat Exchanger

Allows thermal expansion and is suitable for high temperature differences.

3. Floating Head Heat Exchanger

Designed for easy maintenance and cleaning of tube bundles.

Conclusion

Shell and tube heat exchanger is one of the most widely used heat exchangers in various industrial thermal equipment. It has the characteristics of strong structure, high heat exchange efficiency and flexible configuration. It is widely used in the fields of HVAC equipment, chemical industry, energy industry and liquefaction equipment.

Shell and tube heat exchangers enhance heat transfer efficiency and save energy consumption to help reduce costs and drive sustainable industrial progress.
