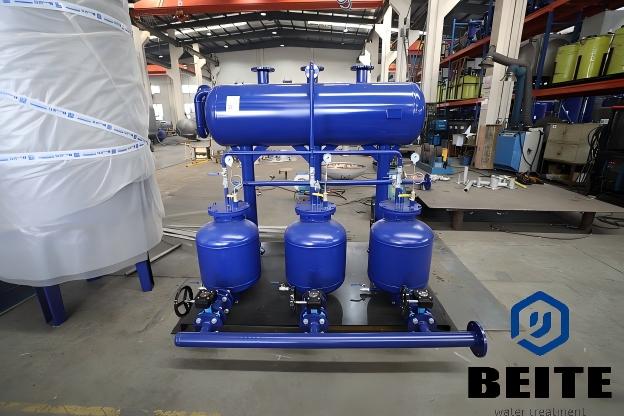

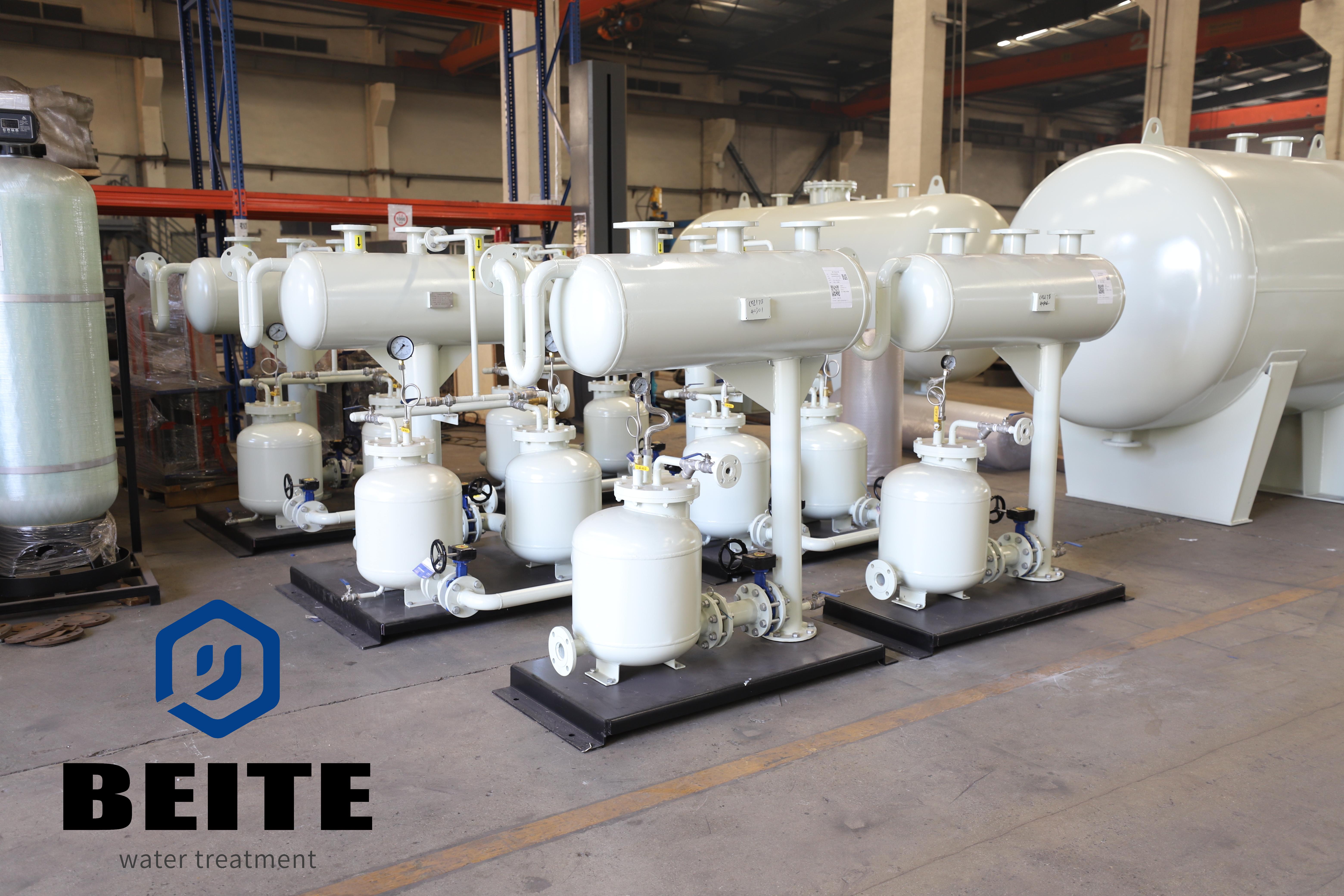

Pneumatic Condensate Recovery Pump Unit for Industrial Steam System

The Pneumatic Condensate Recovery Pump Unit for Industrial Steam System condensate recovery pump is suitable for power plants, chemical industry steam system, HVAC and district heating to collect condensate liquid transportation without electricity supply, recover and reuse high temperature condensate. Recovering condensate greatly improves industrial steam system efficiency and reduces operating costs.

Condensate recovery pumps deliver continuous condensate return even against high temperature, high pressure or vacuum.dPumps provide a stable and energy-efficient solution for industrial steam systems.

What Is a Pneumatic Condensate Recovery Pump Unit?

A pneumatic condensate recovery pump unit consists of compressed air or steam that acts as the motive force moving condensate from points of low pressure to either the boiler feedwater system or heat recovery loop.

Advantages of this type of system over electric pumps include zero electricity being used which allows the use in:

Condensate at high temperatures

Explosive/Hazardous locations

Areas with limited or no reliable power

Power efficient systems

Key Components

The components normally found on a pneumatic condensate pump unit consist of:

Condensate tank (pressure tank)

Pneumatic control valves

Level control (Mechanical or Float)

Air/Steam control inlet assembly

Non return check valves

Discharge piping

Frame-mounted skid (Built in Frame Optional)

Technical Advantages

1. Operates without Electricity

Thermostatic steam traps work on compressed air or steam instead of electricity which reduces the need of electricity

2. High Temperature

Steam traps can discharge condensate at a temperature greater than 100°c without any problem of cavitation.

3. Explosion Proof

Easy to install trap that can be used in industrial applications where using electrical pumps are banned.

4. Energy Saving

Eliminates waste heat from condensate and thus making steam systems more energy efficient.

5. Automatic Operation

Fully mechanical or pneumatic control that provide very steady operation and requires less maintenance.

Application Areas

The pneumatic condensate recovery pump unit is widely used in:

Industrial steam boiler systems

Power generation plants

Chemical and petrochemical industries

Textile and dyeing factories

Food processing plants

HVAC heating and district energy systems

Pharmaceutical manufacturing facilities

Conclusion

Automatic Non Electric Industrial Steam System Condensate Recovery Pumps help increase energy efficiency and recover valuable energy. Conserving energy will not only save you money but it will help reduce your facilities impact on the environment. The Pneumatic Condensate Recovery Pump Unit is ideal for industrial steam systems because it recovers high temperature condensate and returns it to the system.

Save energy and improve energy usage in your industrial steam systems today!
