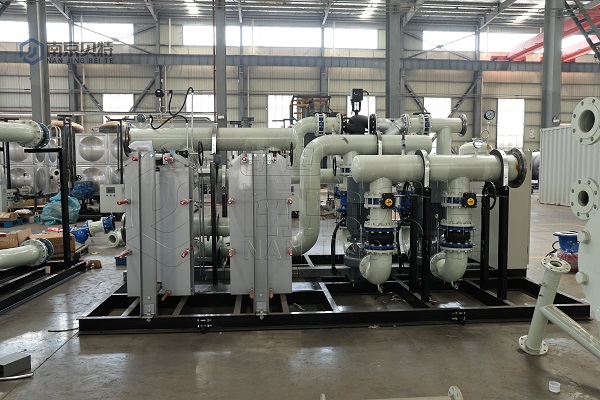

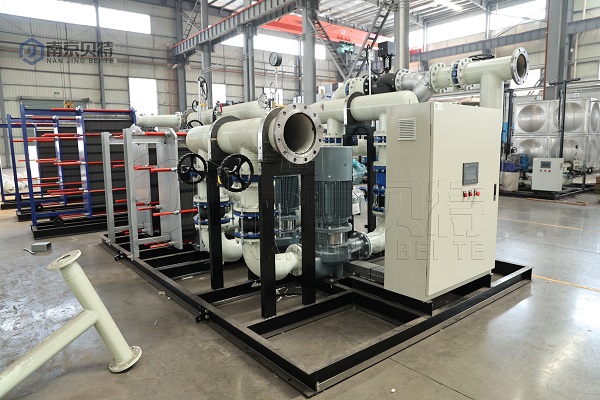

Plate Heat Exchanger Unit: Efficient Heat Transfer Solution for Industrial Applications

A plate heat exchangers unit can be defined as a device that transfers heat between two fluids without mixing them. These types of heat exchangers find applications in different processes like industrial air-conditioning/hvac systems, district heating system, chemical plants, food industry or processing and energy systems.

Advantages of using a plate heat exchanger unit over shell and tube heat exchanger are its higher thermal efficiency, less space-consuming structure, ease of maintenance and less operating costs, becoming one of the most sought-after type of heat exchanger.

What Is a Plate Heat Exchanger Unit?

The Plate Heat Exchanger unit is composed of many thin corrugated metal plates stacked together in a frame. Hot and cold fluids flow through alternate channels formed by the plates.

Heat transfer occurs through the plates' surfaces. There is very good thermal efficiency and the fluids are totally isolated from each other.

Major components：heat exchanger plates (SUS or titanium), Fixed plate, Moving pressure plate, Tightening bolts,Gaskets or brazed sealing system, Inlet/Outlet connections

How Does a Plate Heat Exchanger Unit Work?

Passive heat exchange relies on counter-current heat transfer：

Hot fluid enters through one channel.

Cold fluid enters through opposing channels.

Heat is conducted through the thin metal.

Fluids transfer energy to the other without mixing.

Hot and cold fluids exit through their respective outlets.

This design maximizes heat transfer efficiency and minimizes energy loss.

Types of Plate Heat Exchanger Units

Gasketed Plate Heat Exchanger Unit

Removable plates

Easy maintenance and cleaning

Ideal for HVAC and industrial water systems

Brazed Plate Heat Exchanger Unit

Compact and sealed design

Does not require any gaskets

Ideal for refrigeration and small system applications

Welded Plate Heat Exchanger Unit

Can handle high pressure / high temperature service

Chemical and heavy industry applications

Maintenance and Operation Tips

Maintain a Plate Heat Exchanger Unit :

Clean plates periodically to avoid fouling

Measure pressure drop

Inspect gasket (if gasketed type)

Avoid scaling and corrosion with good water treatment

Stay within max operating pressure & temp limits.

Appropriate maintenance ensures long life of equipment and better performance.

Conclusion

Plate heat exchangers unit are an effective means of heat transfer that help increase energy efficiency, lower operating costs and improve overall system performance. Compact, efficient and versatile, they can be used in countless applications for both commercial and industrial facilities.

If your business is looking for dependable, energy efficient heat exchangers, consider a plate heat exchanger unit for your facility.
