How filter backwash works

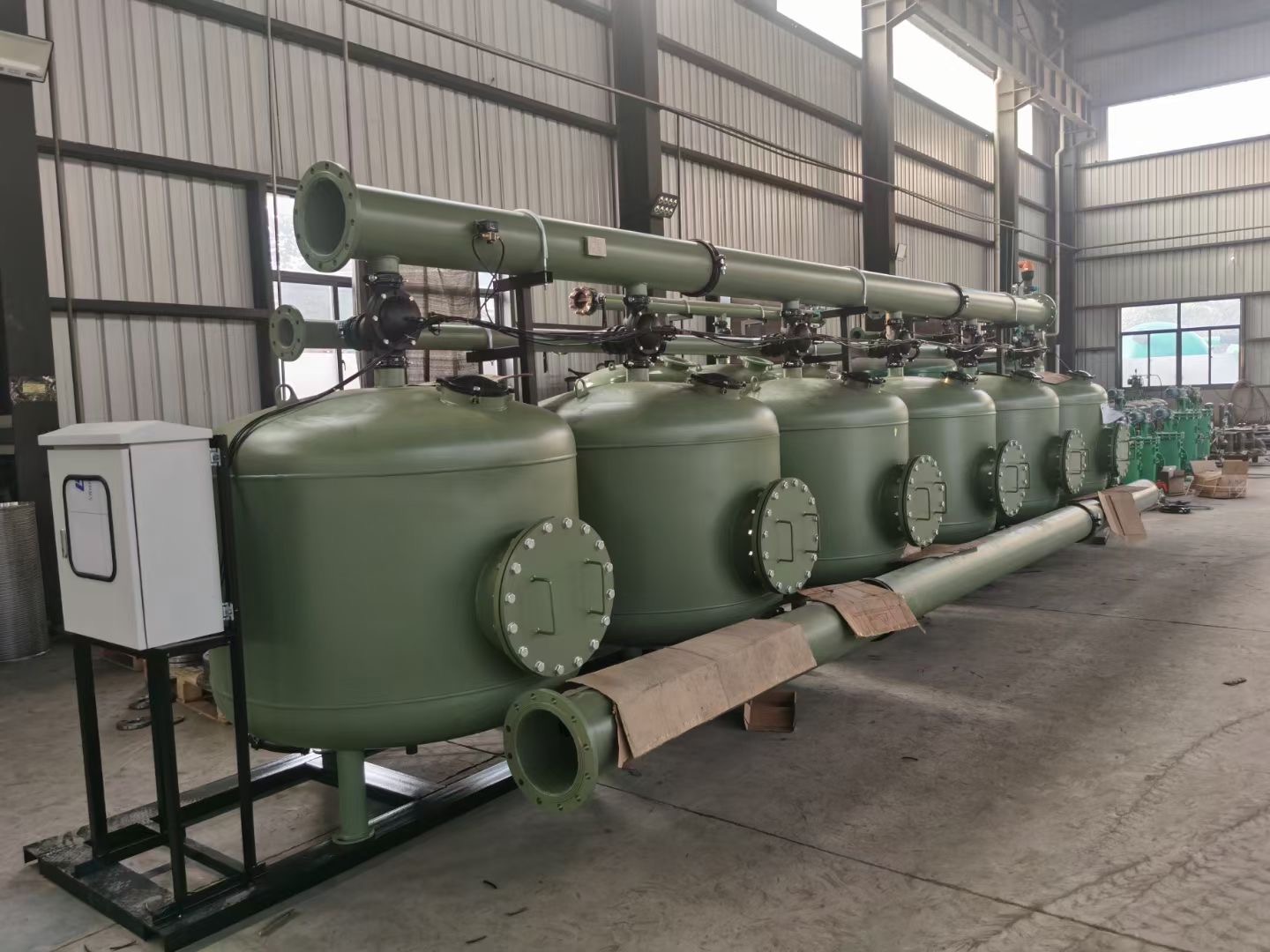

A sand filter backwash operates similarly to other types of sand filters but utilizes carbon steel material for its construction. Here's a general overview of how a sand filter backwash works:

1. Filtration Process: The sand filter contains a bed of sand or other media that traps particles and contaminants as water flows through it. The carbon steel housing ensures structural integrity and resistance to corrosion.

2. Accumulation of Contaminants: Over time, the sand filter accumulates debris, dirt, and other particles captured from the water. This accumulation reduces the efficiency of the filter and requires periodic cleaning to maintain optimal performance.

3. Backwashing Procedure: When the filter becomes sufficiently clogged, a backwashing procedure is initiated. Backwashing involves reversing the flow of water through the filter to dislodge and flush out the trapped contaminants.

4. Reversing Flow: In a typical backwash cycle, valves are adjusted to reverse the flow of water through the filter. The water is directed from the bottom to the top of the filter, causing the sand bed to expand and fluidize.

5. Dislodging Contaminants: As water flows upward through the sand bed, it agitates the sand particles, dislodging the trapped contaminants. The turbulence helps release the debris from the sand grains and suspends them in the water.

6. Waste Disposal: The dislodged contaminants, along with a portion of the filter media, are carried away with the backwash water. This water is directed to a drain or waste disposal system, preventing the released particles from re-entering the filtration system.

7. Rinsing: After the backwashing process is complete, the flow of water is returned to its normal direction, and a rinsing cycle may be initiated. Rinsing helps settle the filter bed and remove any remaining debris before returning the filter to service.

8. Resuming Filtration: Once the backwash and rinsing cycles are finished, the filter is ready to resume normal filtration operations. The cleaned filter bed is capable of effectively trapping particles from the water once again.

FAQ

When the pressure drop reaches what level is suitable to start the backwash operation?

Determining the appropriate pressure drop level to initiate the backwash operation depends on various factors such as the design specifications of the filtration system, the type of contaminants in the water, and the operational requirements of the facility. However, a common approach is to monitor the pressure drop across the filter and initiate backwashing when it reaches a predetermined threshold.

Typically, the pressure drop across the filter increases as contaminants accumulate and restrict the flow of water through the filter media. Once the pressure drop reaches a certain level, it indicates that the filter is becoming clogged and may require cleaning.

The specific pressure drop level at which backwashing should be initiated can vary depending on the system design and manufacturer's recommendations. It's common for facilities to set a target pressure drop range based on operational experience and performance requirements.

For example, a facility might set a target pressure drop range of 5-10 psi (pounds per square inch) above the clean filter pressure as the trigger for initiating the backwash operation. Once the pressure drop exceeds the upper limit of this range, indicating significant fouling of the filter, the backwash process would be initiated to restore filtration efficiency.

Regular monitoring of pressure drop and adherence to predetermined thresholds ensure timely maintenance and optimal performance of the filtration system while preventing excessive energy consumption and potential damage to equipment.

How can you determine if the filter is functioning correctly or if there are any issues?

1. Visual Inspection:

• Check for any visible signs of damage or leaks in the filter housing, piping, valves, and associated components.

• Ensure that all connections are secure and that there are no loose fittings.

2. Pressure Drop Monitoring:

• Monitor the pressure drop across the filter. A significant increase in pressure drop could indicate that the filter is becoming clogged and requires cleaning.

• Conversely, a sudden decrease in pressure drop could indicate a problem with the filter or a leak in the system.

3. Flow Rate Monitoring:

• Measure the flow rate of water entering and exiting the filter. A decrease in flow rate could indicate a restriction in the filter due to clogging or other issues.

• Ensure that the flow rate remains consistent over time, as fluctuations could indicate problems with the filter or the overall system.

4. Water Quality Testing:

• Regularly test the quality of the filtered water to ensure that it meets the required standards.

• Check for any changes in water quality parameters such as turbidity, pH, chlorine levels, or levels of specific contaminants.

5. Backwash Efficiency:

• During backwashing, observe the effectiveness of the process in removing trapped contaminants from the filter media.

• Ensure that the backwash water appears cloudy or discolored, indicating that it is carrying away debris from the filter.

6. System Alarms and Sensors:

• Pay attention to any alarms or alerts generated by monitoring sensors installed in the filtration system.

• These sensors may detect abnormalities such as pressure deviations, flow rate changes, or leaks, providing early warning of potential issues.

7. Regular Maintenance:

• Adhere to a regular maintenance schedule for the filter and associated components, including cleaning, inspection, and replacement of filter media or cartridges as needed.

• Follow manufacturer recommendations for maintenance procedures and intervals.

8. Consult Manufacturer Guidelines:

• Refer to the manufacturer's guidelines and documentation for specific troubleshooting steps and recommendations for your particular filter system.

By performing these checks regularly and diligently, you can ensure that your filter system operates smoothly and effectively, and quickly identify and address any issues that may arise. Regular maintenance and monitoring are essential for maximizing the lifespan and performance of the filtration system.

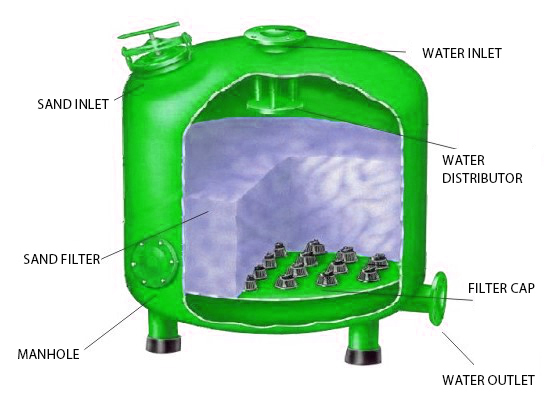

Sand filter tanks typically feature numerous pipes on the exterior. Could you please explain their purposes and the standard operating procedures?

1. Inlet Pipe:

• Function: The inlet pipe brings untreated water into the sand filter tank from the source, such as a pump or water supply line.

• Normal Working Procedure: Untreated water enters the filter tank through the inlet pipe, where it undergoes filtration to remove impurities.

2. Outlet Pipe:

• Function: The outlet pipe carries filtered water out of the sand filter tank and directs it to the desired destination, such as a distribution system or storage tank.

• Normal Working Procedure: Filtered water exits the sand filter tank through the outlet pipe, ready for distribution or further treatment.

3. Backwash Pipe:

• Function: The backwash pipe allows for the discharge of backwash water and trapped contaminants during the backwashing process.

• Normal Working Procedure: During backwashing, the flow direction is reversed, and water, along with dislodged contaminants, is directed out of the sand filter tank through the backwash pipe for disposal or treatment.

4. Drain Pipe:

• Function: The drain pipe provides a means for draining water from the sand filter tank for maintenance, repairs, or emergency situations.

• Normal Working Procedure: If draining is necessary, such as for cleaning or repairs, water can be safely removed from the sand filter tank through the drain pipe.

5. Air Relief Pipe:

• Function: The air relief pipe allows for the release of trapped air or gas from the top of the sand filter tank, preventing air pockets that could affect filtration performance.

• Normal Working Procedure: Air trapped inside the filter tank rises to the top and is released through the air relief pipe, ensuring proper operation of the filtration system.

6. Pressure Gauge or Pressure Relief Valve:

• Function: The pressure gauge or relief valve measures the pressure inside the sand filter tank and helps prevent over-pressurization.

• Normal Working Procedure: The pressure gauge provides real-time monitoring of pressure changes within the filter tank, allowing operators to detect any anomalies and take appropriate action if necessary. The pressure relief valve releases excess pressure to prevent damage to the filter tank or associated components.

These pipes work together to ensure the proper functioning of the sand filter tank, allowing for the effective filtration of water and maintenance of water quality standards. Regular inspection, maintenance, and monitoring of these pipes are essential to ensure the continued performance and longevity of the filtration system.
