Chiller systems are widely used in various industries to provide cooling solutions for large-scale processes or facilities. Two common types of chiller systems are air-cooled and water-cooled chillers. While both serve the same purpose of cooling, there are fundamental differences between the two. In this article, we will explore these differences and understand the advantages and disadvantages of each system.

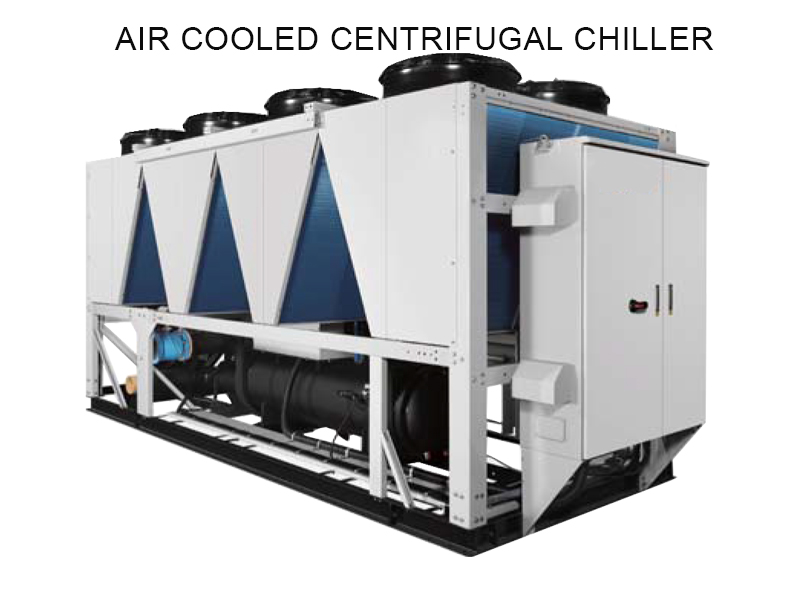

Air-Cooled Chiller Systems

Air-cooled chiller systems are designed to dissipate heat using ambient air. These systems contain components such as compressors, condensers, evaporators, and fans. Here are some key points about air-cooled chillers:

Operation and Cooling Mechanism

Air-cooled chillers use fans to draw ambient air over the condenser coils, transferring heat from the refrigerant to the outdoor air. This process effectively cools down the refrigerant before it circulates back into the system. The heat dissipation occurs through natural convection or forced convection with the assistance of fans.

Installation and Space Requirements

One advantage of air-cooled chillers is that they do not require a separate cooling tower or water source for operation. This eliminates the need for complex plumbing or water circulation systems. As a result, air-cooled chillers are relatively easier to install and require less space compared to their water-cooled counterparts.

Efficiency and Performance

Air-cooled chillers are generally less efficient than water-cooled chillers. The cooling capacity of an air-cooled chiller is limited by the ambient air temperature, which can vary throughout the year. Higher ambient temperatures can reduce the chiller's cooling efficiency, resulting in decreased performance. Additionally, air-cooled chillers tend to consume more energy than water-cooled chillers under the same operating conditions.

Maintenance Requirements

Maintenance for air-cooled chiller systems is typically simpler compared to water-cooled chillers. Since there is no need for a separate cooling tower or water treatment system, the maintenance tasks usually include cleaning the condenser coils and ensuring proper airflow. However, it's important to regularly inspect the fans, motors, and electrical components to ensure optimal operation.

Water-Cooled Chiller Systems

Water-cooled chiller systems utilize water as the primary medium for heat dissipation. These systems require additional components like cooling towers, pumps, and water circulation systems. Let's delve into the key aspects of water-cooled chillers:

Operation and Cooling Mechanism

Water-cooled chillers transfer heat from the refrigerant to the water circulating through the condenser. The heated water then flows into a cooling tower, where it is exposed to ambient air, dissipating the accumulated heat. Afterward, the cooled water returns to the chiller to repeat the cycle. This continuous flow of water enables efficient cooling of the refrigerant.

Installation and Space Requirements

Water-cooled chillers are more complex to install due to the requirement of cooling towers, pumps, and extensive plumbing. These systems also necessitate a reliable water source and proper water treatment to prevent scaling or corrosion. As a result, water-cooled chillers usually require more space and planning during installation.

Efficiency and Performance

Compared to air-cooled chillers, water-cooled chillers generally offer higher efficiency and performance. Since water has better heat transfer properties than air, the cooling capacity remains consistent regardless of the ambient temperature. Water-cooled chillers are particularly advantageous in applications where maintaining precise temperature control is crucial.

Maintenance Requirements

Maintaining water-cooled chiller systems can be more involved due to the additional components involved. Regular inspections of the cooling tower, pumps, and water treatment systems are necessary to ensure smooth operation. Monitoring water quality, cleaning or replacing filters, and addressing potential scaling or corrosion issues are important maintenance tasks.

Conclusion

In summary, the choice between air-cooled and water-cooled chiller systems depends on various factors such as installation constraints, space availability, energy efficiency requirements, and the need for precise temperature control. Air-cooled chillers offer ease of installation, lower space requirements, and simpler maintenance, but may have reduced performance in high ambient temperatures. On the other hand, water-cooled chillers provide higher efficiency and better performance, but require more extensive installation and maintenance efforts.

Understanding the differences between air-cooled and water-cooled chillers can help businesses make informed decisions when selecting the most suitable cooling system for their specific needs. Whether it's a smaller application with space constraints or a large-scale facility requiring precise temperature control, both types of chillers have their advantages and considerations to keep in mind.
