Centralized Heating Water Treatment: Improving Efficiency, Reliability, and System Lifespan

Centralized heating systems are essential as it offers reliable and efficient heating for local communities, commercial buildings, industrial sites, campuses, hospitals and district heating networks. Yet without effective water treatment these systems are prone to scaling, corrosion, sludge formation and microbiological contamination which ultimately can result in reduced heat transfer efficiency, increased energy use and high-cost equipment failures.

With the right centralized heating water treatment you can maintain your system to always work at its optimal performance, prolong enhancing cycle equipment lifespan and reduce operational costs.

Why Centralized Heating Water Treatment Is Important

Water is the principal heat transfer medium used in centralized heating networks Over the long term, dissolved minerals and impurities in the water can cause all sorts of problems like:

Scale Formation

Calcium and magnesium hardness can also precipitate in heat exchangers, pipelines, and boilers internal surfaces. Even a thin layer of scale can greatly reduce heat transfer efficiency and increase fuel use.

Corrosion

Steel pipelines, heat exchangers, pumps, and storage tanks are subject to corrosion due to dissolved oxygen, carbon dioxide, as well as poor pH levels. Corrosion not only leads to equipment damage, but it also creates rust particles that find their way throughout the system.

Sludge and Sediment Accumulation

Corrosion products, dirt and suspended solids can build up in pipelines and equipment that can cause blockages, decreased flow rates and uneven heat distribution.

Microbial Growth

Under some operational conditions, bacteria and microorganisms can grow in the system, which influences water quality and accelerates corrosion.

Key Components of a Centralized Heating Water Treatment System

Typical heating water treatment systems are multi-stage processes which target specific areas of poor water quality.

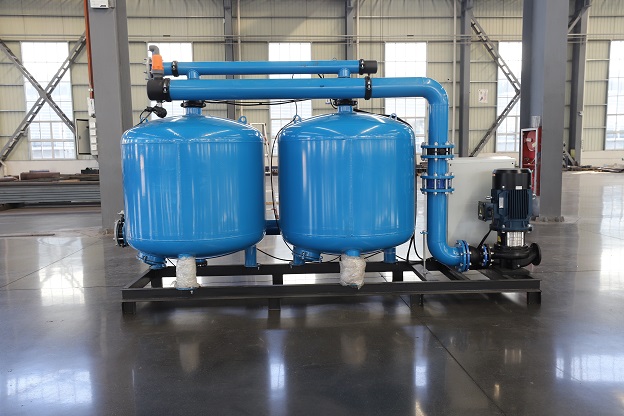

Multimedia Filter

Multimedia FiltrationMelted plastic pellets with hot water form a solid mass & later break down into smaller pieces or effluent depending on the melting temperature used in filtrationA multimedia filter removed suspended solids, sediment, and particulate matter from the makeup water supply. It is the first line of defense in providing protection to downstream equipment.

Benefits:

Reduces turbidity

Protects pumps and valves

Improves overall water quality

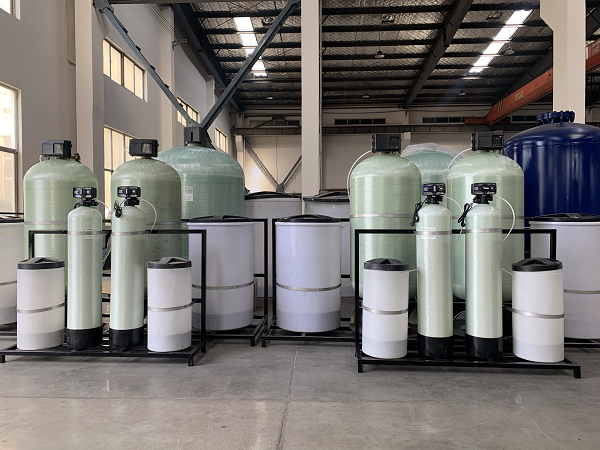

Water Softener System

The water softener kit can also be called as an ion exchange technology, removes the hardness ions like calcium and magnesium.

Benefits:

Prevents scale formation

Improves heat transfer efficiency

Extends equipment service life

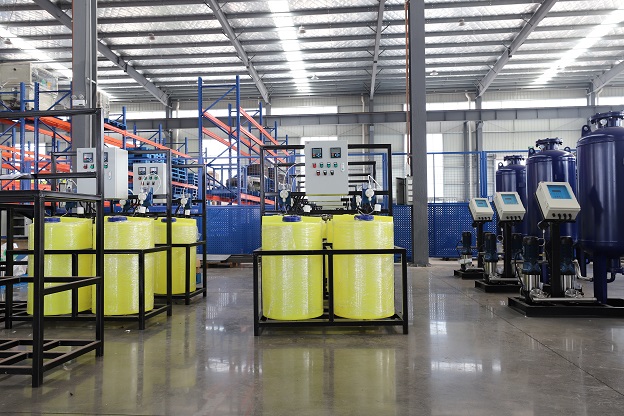

Chemical Dosing System

Automatic chemical dosing equipment injects exact treatment chemicals into the heating network.

Common chemicals include:

Corrosion inhibitors, Oxygen scavengers, pH adjustment agents, Scale inhibitors, Biocides

Benefits:

Continuous water quality control

Reduced manual operation

Improved system stability

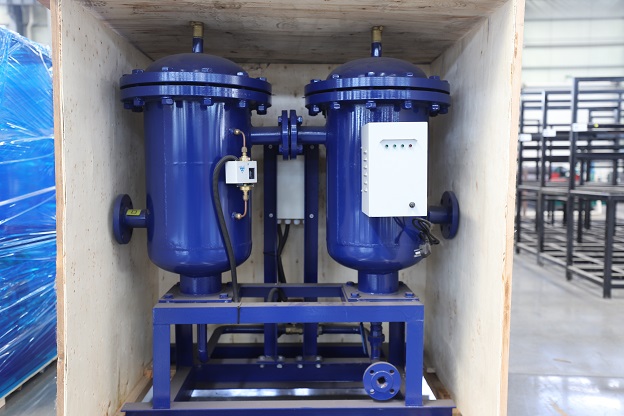

Side Stream Filtration

Sedimentation, removal of Turkish bog migration volumes during the day: Side Stream Filters instantly remove suspended solids and corrosion products from circulating reducing waters.

Benefits:

Reduces sludge accumulation

Maintains clean system water

Improves circulation efficiency

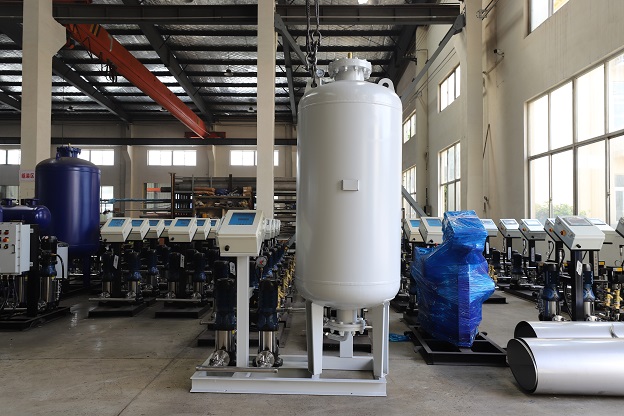

Expansion and Makeup Water System

Pressure maintenance and makeup water systems provide appropriate stable operating pressure while addressing network water losses.

Benefits:

Maintains system pressure

Prevents air ingress

Enhances operational reliability

Typical Applications

Centralized heating water treatment systems are used broadly in:

District heating networks

Residential communities

Commercial buildings

Universities and campuses

Hospitals

Industrial parks

Power plants

HVAC heating systems

Combined heat and power (CHP) establishments

Conclusion

For the efficiency, reliability and durability of modern heating systems, a complete treatment for centralized heating water is an effective solution. This helps to lower operating costs, increase energy efficiency and enable equipment to perform at its best by preventing scale formation, controlling corrosion and ensuring water quality remains at the desired level.

Whatever the purpose — whether district heating networks, commercial facilities or industrial heating applications — a complete water treatment system not only ensures economic efficiency but also sustainable operational success.
