NZG

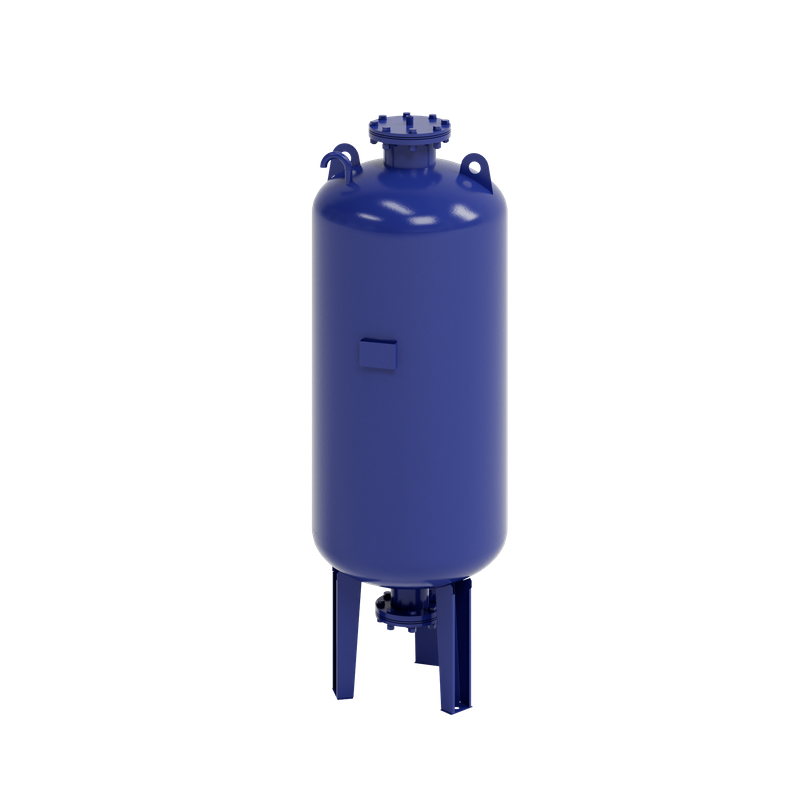

Bladder surge vessels, also known as bladder surge tanks or bladder accumulators, are hydraulic devices used to control pressure fluctuations in fluid systems. They are commonly used in water supply systems, industrial processes, and various hydraulic applications.
A bladder surge vessel consists of a cylindrical tank with a flexible bladder or diaphragm installed inside. The bladder separates the liquid and gas phases within the vessel. The liquid is contained within the bladder, while the gas (usually compressed air or nitrogen) fills the space between the bladder and the tank walls.

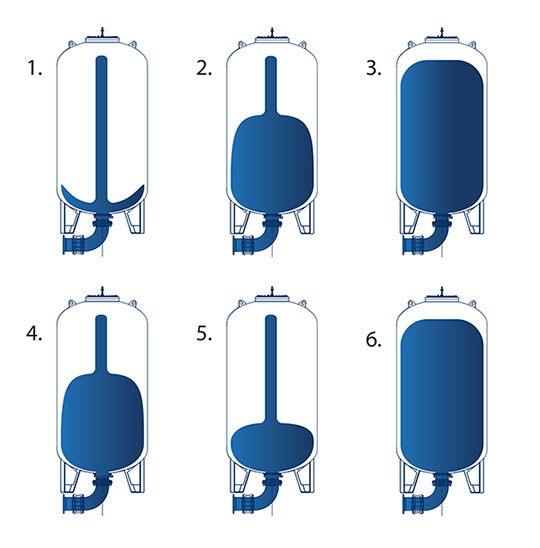

When the system pressure increases, the excess liquid flows into the bladder, compressing the gas and storing potential energy. This helps to dampen pressure surges, water hammer, and pulsations that may occur due to rapid changes in flow or pump operation.
During periods of low demand or pressure drop, the stored energy in the compressed gas is released as the liquid is forced back into the system, maintaining a steady and controlled pressure.
Bladder surge vessels are designed to absorb and minimize pressure variations, prevent damage to piping systems, and reduce stress on pumps and other system components. They can improve the overall performance, stability, and reliability of fluid systems by providing surge control and preventing pressure fluctuations from negatively impacting the system.
The structure of a typical bladder surge vessel can be described as follows:
Tank: The vessel is comprised of a cylindrical tank made of sturdy materials such as steel or composite materials. The tank provides the external structure and houses the bladder and other internal components.
Bladder: The bladder is the key component within the surge vessel. It is a flexible, airtight membrane made of materials such as rubber or reinforced elastomers. The bladder separates the liquid phase (water or fluid) from the gas phase (compressed air or nitrogen) within the vessel.
Gas Chamber: The space between the bladder and the tank walls is referred to as the gas chamber. This chamber is filled with a compressed gas, typically air or nitrogen. The gas chamber serves as a cushion to absorb pressure fluctuations and store potential energy.
Inlet and Outlet Connections: The surge vessel is equipped with inlet and outlet connections to allow the flow of fluid in and out of the system. These connections are typically located at the top or bottom of the vessel and are connected to the piping system.
Pressure Relief Valve: In order to prevent excessive pressure build-up, a pressure relief valve may be installed on the vessel. This valve is designed to open and release excess pressure when it exceeds a certain threshold, ensuring the safety of the system.
Mounting and Support: Bladder surge vessels are often mounted on a stable base or support structure to ensure stability and proper positioning within the system. Mounting brackets, legs, or frames may be utilized depending on the specific installation requirements.
It's important to note that the exact structure and design of a bladder surge vessel can vary based on factors such as application, system requirements, and manufacturer specifications.
Features
1. Corrosion Resistance: Expansion tanks are typically constructed from materials that are resistant to corrosion, such as stainless steel or high-quality thermoplastic. This corrosion resistance ensures the longevity and durability of the tank, even when exposed to water or other fluids over an extended period.
2. Easy Installation: Expansion tanks are designed for easy installation and connection to plumbing or heating systems. They often come with mounting brackets or straps for secure attachment and can be installed in various orientations, depending on the available space and system requirements.
3. Maintenance-Free Operation: Once properly installed, expansion tanks generally require minimal maintenance. They do not have any moving parts that need regular servicing or lubrication. However, it is recommended to periodically check the tank's pressure and inspect for any signs of damage or leakage.
4. Compatibility: Expansion tanks are compatible with a wide range of plumbing and heating systems, including residential, commercial, and industrial applications. They can be used in conjunction with water heaters, boilers, hydronic heating systems, and other closed-loop systems that experience thermal expansion.
5. Safety Assurance: By preventing pressure buildup and potential damage, expansion tanks contribute to the safety of plumbing and heating systems. They help minimize the risk of leaks, burst pipes, and other system failures, ensuring a safe and reliable operation.
Overall, expansion tanks offer essential features that help regulate pressure, compensate for thermal expansion, and maintain the integrity of plumbing and heating systems. Their inclusion is crucial for the efficient and safe operation of these systems, providing peace of mind to homeowners, building owners, and system operators.
