It is a new generation of energy-saving water treatment equipment developed by absorbing the advantages of similar products at home and abroad.

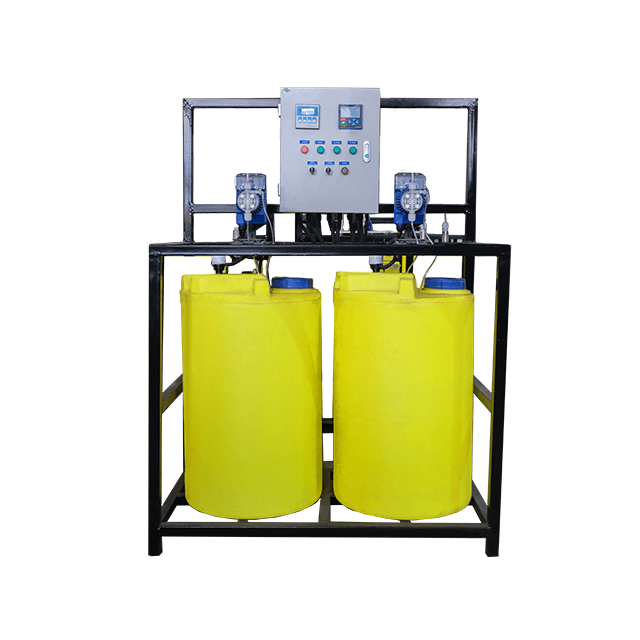

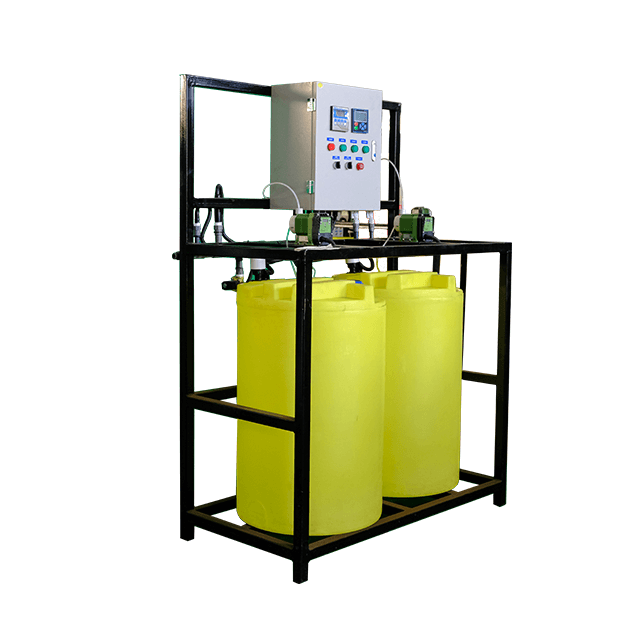

The automatic dosing device is mainly composed of solution tank, metering pump, filter, solenoid valve, check valve, water level meter, pressure meter, control cabinet, installation platform, etc., which are integrated and installed on a base. Users only need to place the combined dosing device in the dosing room, connect the dosing pipe to the power supply to start and put it into operation, and automatically detect the acidity and alkalinity of the fluid in the process of operation to judge intelligently and add the corresponding drug solution.
Principle of operation
The dosing of chemicals to the system is achieved by the mechanical pulse action of the dosing pump and the stroke adjustment principle. The following two control modes are used to realize automatic dosing. Time control mode: The microcomputer time control switch controls the opening and closing of the metering pump and drainage valve to achieve regular dosing and discharging. Indication control mode: The change of water quality index controls the opening and closing of metering pump and sewage valve in real time to realize automatic dosing and automatic discharging.
Features
1、It can dose various proportion of water treatment chemicals with high precision and accurate measurement.
2、High degree of automation, simple operation, low energy consumption.
3、Installation and use, maintenance is simple and convenient.
4、Strong corrosion resistance, strong acid and alkali resistance, safe and reliable.
5、If the user needs, the system can realize remote control and be integrated into the computer management system.
| Designation | Model Number | Dimension | Import caliber | Export caliber |
| Single pump and cylinder, time control | YTZDJ-2000D | 640×670×1650 | DN25 | DN25 |
| Single pump and cartridge with conductivity and PH detector | YTZDJ-2000DP | 640×670×1900 | DN25 | DN25 |
| Single pump and cylinder, time control | YTZDJ-2000S | 670×1260×1650 | DN25 | DN25 |
| Single pump and cartridge with conductivity and PH detector | YTZDJ-2000SP | 670×1260×1900 | DN25 | DN25 |
Can be configured upon request. Corrosion rate online monitor, turbidity online monitor, ORP online monitor, fouling thermal resistance meter, etc.
Agitator, PLC, GPRS, etc. can be configured upon request.
