Advantages and Disadvantages of Plate Heat Exchangers

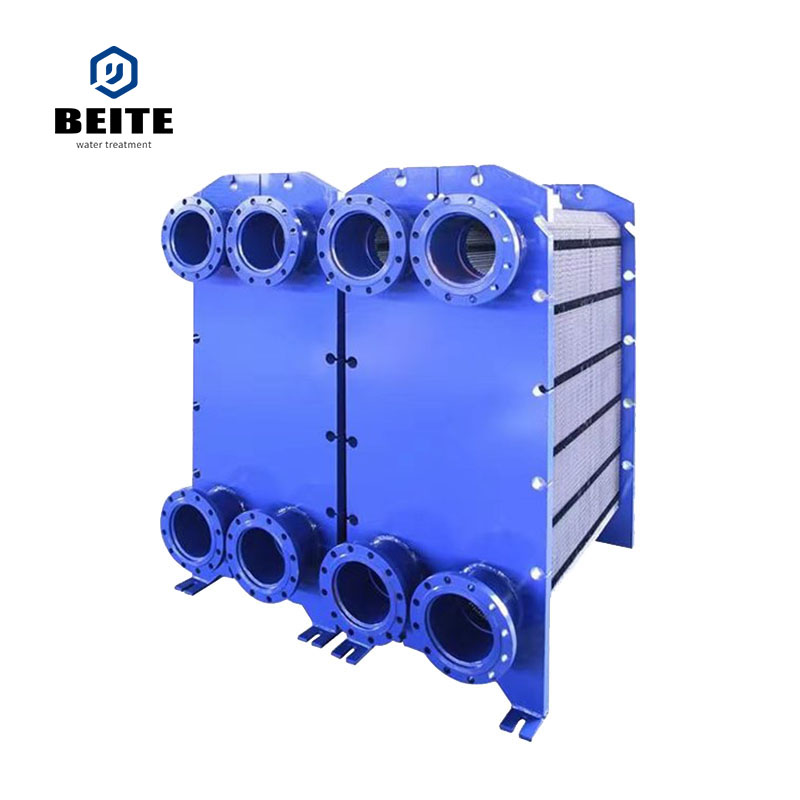

What is a Plate Heat Exchanger?

Plate heat exchanger is a device used for heat exchange. It is organized by stacking flat plate heat exchangers. The plates are fixed by sealing gaskets and pressure strips to form a complete heat exchange unit. It has many advantages such as compact structure, high heat transfer efficiency, energy saving and environmental protection, and is widely used in industrial production, chemical industry, energy, construction and other fields.

Advantages of Plate Heat Exchangers

1. High Heat Transfer Efficiency: Plate heat exchangers use large-area laminated plates to form a heat exchanger core. The heat transfer coefficient is high, the heat transfer efficiency is more stable, and efficient heat exchange can be achieved;

2. Small Footprint: The plate heat exchanger has a compact structure and usually only takes up about 1/3 of the area of a traditional shell and tube heat exchanger. It is suitable for many occasions, such as ships, air conditioning, chemical industry and other areas with relatively small space;

4. Easy to Clean and Maintain: Each plate in the plate heat exchanger can be removed individually, and the surface of the plate is relatively smooth, making it very easy to clean and maintain;

5. More Flexible Operation: Plate heat exchangers can be installed with different numbers of plates as needed to achieve more flexible operation. At the same time, flow channels can be added or reduced in the plates according to specific conditions to adapt to different system requirements. , improve caterability.

Disadvantages of Plate Heat Exchangers

1. Not suitable for High Pressure and High Temperature: Plate heat exchangers are mainly made of laminated plates, so their pressure and temperature tolerance are relatively limited, and they are not suitable for high pressure and high temperature scenarios;

2. High Manufacturing and Maintenance Costs: There are many parts such as gaskets and pressure strips in the plate heat exchanger, and the plates are very thin, so the manufacturing cost is high. At the same time, if maintenance is needed, it will be more complicated and time-consuming;

3. Easy to Clog Inside: The flow channels between the plates in the plate heat exchanger are very small, so when the fluid contains solid particles, it is easy to accumulate debris inside the plates, causing an increase in flow resistance, thus affecting the heat exchange efficiency.

Applications of Plate Heat Exchangers

Plate heat exchangers are widely used in various industrial fields, especially suitable for the following occasions:

1. Heat exchange in air conditioning system;

2. Heat exchange in chemical production process;

3. Heat exchange in gas boilers;

4. Heat exchange in mining processing;

5. Heat exchange in ship engine cooling system;

6. Heat exchange in food processing;

7. Heat exchange in the petrochemical industry, etc.
