Automatic Brush Type Self-Cleaning Filter: Efficient Filtration for Industrial Water Treatment Systems

What Is an Automatic Brush Type Self-Cleaning Filter?

An automatic brush type self-cleaning filter is a pressure driven filter that uses a rotating brush cleaning mechanism to remove contaminants from a filter screen.

When water flows into the filter, particulates get screened out and collect on the inner surface of the screen. After a given pressure differential is reached, or after a given time period, the brush assembly rotates and clears debris that has been accumulating on the screen.

The contaminants are then removed through a drain valve and the filtering continues.

The process of automatic cleaning significantly reduces the level of manual maintenance required.

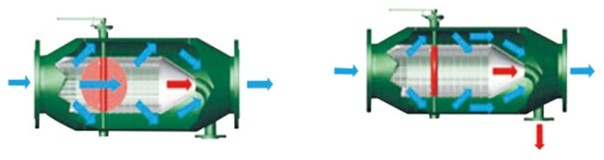

How Does an Automatic Brush Type Self-Cleaning Filter Work?

Four stages define this filtration process:

1. Filtration

As water flows into filter housing, it first goes through a stainless steel filter screen. These screen openings trap and hold solid materials larger than the openings.

2. Monitoring

To maintain pressure, a differential pressure controller checks the filter screen pressure at intervals.

3. Automatic Cleaning

The pressure differential can trigger a timed clean. Either way, the pressure differential has to meet a predetermined pressure level. At this point, the brush assembly, powered by a motor, begins its automatic clean.

Brushes in this assembly sweep the screen and clean the debris.

4. Discharge

The drain valve opens when the brush assembly is done, and all materials that were trapped in the filter housing are purged. Filtration is an ongoing process in this case.

The entire cycle lasts a few seconds and doesn’t stop the flow of water.

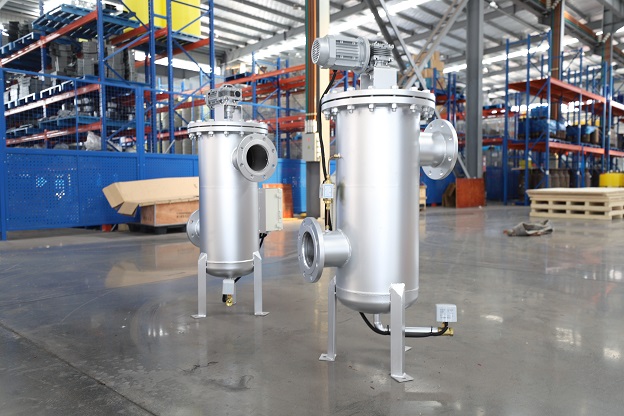

Key Components of an Automatic Brush Type Self-Cleaning Filter

A complete system typically consists of:

Filter housing

Stainless steel filter screen

Brush cleaning assembly

Electric motor or drive unit

Differential pressure controller

Automatic drain valve

PLC or intelligent control panel

Each of these components helps facilitate proper filtration and dependable self-cleaning.

Applications of Automatic Brush Type Self-Cleaning Filters

Industrial Water Treatment

Automatic brush filters remove suspended solids in an industrial setting and safeguard downstream equipment.

Common uses include:

Filtration of process water

Filtration of cooling water

Pretreatment systems

Water recycling systems

HVAC systems

Brush type self cleaning filters also safeguard debris accumulation in chillers, heat exchangers, pumps, and cooling towers.

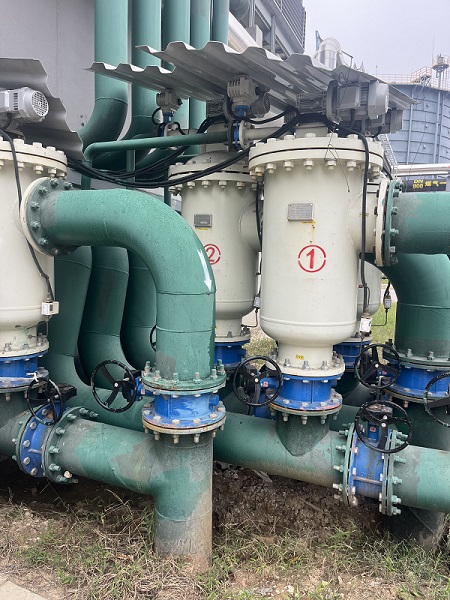

Cooling Tower Systems

Sediment and biological debris may collection in cooling towers and compromise cooling efficiency, but these filters clear them.

Agricultural Irrigation

To sustain the even distribution of water in an irrigation system, automatic filters are deployed to stop emitter blockage.

Power Plants

To safeguard conductors, cooling circuits, and process equipment, generation of power utilizes self cleaning filter systems.

Municipal Water Treatment

Pretreatment and system protection within water distribution rely on the use of automatic brush filters.

Why Choose an Automatic Brush Type Self-Cleaning Filter?

For industries that want dependable, hassle-free water filtration, automatic brush type self-cleaning filters offer numerous benefits, including the following:

No need for shutdown during filtration

Lower overall costs

Better protection for equipment

Greater reliability for the system

Less maintenance

Sustained operational efficiency

Industries appreciate these advantages for any applicable filtration system.
